High Data Rate 82Mbps Rugged IP66 Encryption Handheld IP MESH WIFI Voice Two-way Intercom Radio Transceiver
ZKManet2132UM is a handheld MESH radio with dual transmitters and receivers, supporting both MESH self-organizing network multi-hop relay function and Wi-Fi hotspot. It features BD/GPS positioning, HDMI HD interface, and a 3.5mm audio interface, supporting HD video input and voice intercom. It is characterized by its small size, light weight, portability, long battery life with a built-in lithium battery, and other significant features.
* Supports voice intercom
* Data rate up to 82 Mbps
* Full IP duplex transparent data transmission
* Rugged IP66
* Supports 2.4G WIFI connection
* Small size and light weight
* Easy Operation
| Model | ZKManet2132UM | Brand | ZKMANET |
| RF Parameters | Frequency | 1.4GHz (300MHz-3.8GHz Customizable) |
| Bandwidth | 5/10/20/40MHz |
| RF Channel | 2T2R |
| Output Power | 1W |
| Range | 1-2km |
| Network Parameters | Network Size | 64 Nodes |
| Data Rate | 82Mbps |
| Encryption | AES |
| WIFI | 2.4GHz |
| Physical/Environment | Dimensions | 168*74*33mm |
| Weight | 729g (w/ battery) |
| Working Temp | -20ºC~+65ºC |
| IP Rating | IP66 |
| Electronic Parameters | Power Supply | 12V |
| Working Time | 4h |
| Power Consumption | <6W |

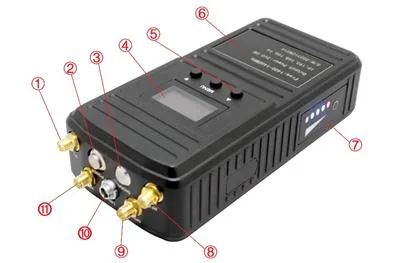

- MESH antenna interface, SMA F
- Power push button
- Signal indicator
- LCD display
- Configuration buttons - up, down and confirm
- Nameplate
- Battery indicator
- MESH antenna interface, SMA F
- GPS/BD antenna interface
- LAN interface - 4-pin female LEMO connector.
- WIFI antenna interface
- Hang buckle
- Charging port
